| Place of Origin: | China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | CE, RoHS, FCC, FDA, UL, EMC, ISO9001 |
| Model Number: | OLSQXXTXL-CD10 |
| Minimum Order Quantity: | 1 pc |
| Price: | negotiable |
| Packaging Details: | 4pcs/ tray, individual package |
| Delivery Time: | 3-6 working days |
| Payment Terms: | T/T |
| Supply Ability: | 7k-10k per month |
| Product Name: | 100G QSFP28 1310nm 10km | Data Rate: | 100 Gb/s |
|---|---|---|---|
| Wavelength: | 1295~1310 Nm | Distance: | 10 Km |
| Compatibility: | Cisco | Form Factor: | QSFP28 |
| Fiber Type: | SMF | DOM: | YES |
| Connector: | LC Duplex | Environment: | Operating: 0°C To 70°C |
| High Light: | Cisco QSFP28 Optical Transceiver,100GBASE-LR4 QSFP28 Optical Transceiver,100GBASE-LR4 |
||

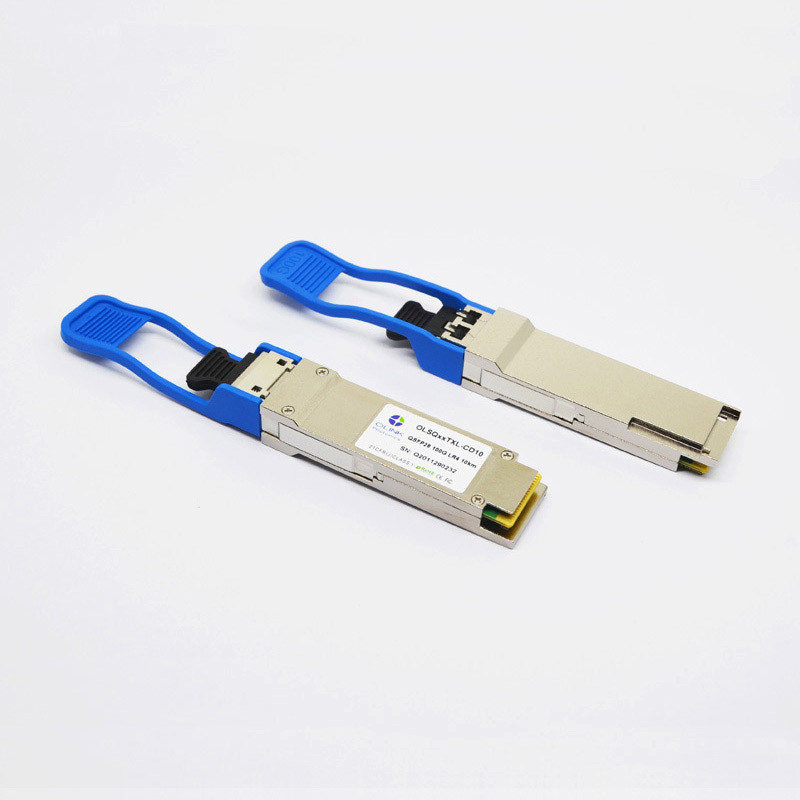

Cisco QSFP-100G-LR4-S Compatible 100GBASE-LR4 QSFP28 Optical Transceiver (SMF, 1295~1310nm, LC, 10km, DOM)
100G QSFP28 1310nm 10km
This 100GBASE-LR4 QSFP28 transceiver is compatible with Cisco networking equipment and equivalent to Cisco QSFP-100G-LR4-S. It is suitable for long distances and offers a highly cost-effective way to establish a 100 Gigabit link connectivity between devices using QSFP28 ports. The compatible QSFP-100G-LR4-S converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. The transceiver supports link lengths of up to 10km over single-mode fiber (SMF) at the wavelength specified between 1295nm and 1310nm using a duplex LC connector.
• Functionally identical to Cisco QSFP-100G-LR4-S
• Up to 26Gb/s data rate per channel
• QSFP28 MSA compliant
• Up to 10km on single mode Fiber
• Single 3.3V power supply
• Maximum power consumption 3.5W
• Duplex LC optical connector
• Built-in digital diagnostic function
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit | Note |
| Supply Voltage | Vcc | -0.5 | 3.6 | V | |
| Storage Temperature | TS | -40 | 85 | °C | |
| Relative Humidity | RH | 0 | 85 | % | |
| Rx Damage Threshold,per Lane | PRdmg | 5.5 | dBm |
Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.
Optical Characteristics (Top=0~70℃, Vcc=3.14~3.47V)
(Tested under recommended operating conditions,unless otherwise noted)
| Parameter | Symbol | Unit | Min | Typ | Max | Notes | ||||
| Transmitter | ||||||||||
| Signaling rate, each lane | Gb/s | 25.78125 ±100 ppm | 1 | |||||||
| Four Lane Wavelength Range | λ1 | nm | 1294.53 | 1295.56 | 1296.59 | |||||
| λ2 | 1299.02 | 1300.05 | 1301.09 | |||||||
| λ3 | 1303.54 | 1304.58 | 1305.63 | |||||||
| λ4 | 1308.09 | 1309.14 | 1310.19 | |||||||
| Total launch power | Pout | dBm | 10.5 | |||||||
| Average launch power, each lane | Pavg | dBm | -4.5 | 4.5 | 2,7 | |||||
| Optical modulation amplitude, each lane (OMA) | OMA | dBm | -1.3 | 4.5 | ||||||
| Extinction ratio | ER | dB | 4 | |||||||
| Side-mode suppression ratio | SMSR | dB | 30 | |||||||
|
Average launch power of OFF transmitter, per lane |
POFF | dBm | -30 | |||||||
| Optical return loss tolerance | dB | 20 | ||||||||
| Transmitter reflectance | dB | –12 | ||||||||
| Transmitter eye mask {X1, X2, X3, Y1, Y2, Y3} | {0.25, 0.4, 0.45, 0.25, 0.28, 0.4} | 3 | ||||||||
| Receiver | ||||||||||
| Receive Rate for Each Lane | Gb/s | 25.78125 ±100 ppm | 4 | |||||||
| Four Lane Wavelength Range | λ1 | nm | 1294.53 | 1295.56 | 1296.59 | |||||
| λ2 | 1299.02 | 1300.05 | 1301.09 | |||||||
| λ3 | 1303.54 | 1304.58 | 1305.63 | |||||||
| λ4 | 1308.09 | 1309.14 | 1310.19 | |||||||
| Overload Input Optical Power | Pmax | dBm | 5.5 | |||||||
|
Average Receive Power for Each Lane |
Pin | dBm | -10.6 | 4.5 | 5,7 | |||||
| Receiver Sensitivity(OMA)per lane | Psens1 | dBm | -11.3 | |||||||
| Stressed Sensitivity(OMA) per lane | Psens2 | dBm | -6.8 | 6 | ||||||
| Return Loss | RL | dB | -26 | |||||||
| Receiver Electrical 3dB upper cutoff frequency, per lane | GHz | 31 | ||||||||
| Los De-Assert | Pd | dBm | -11.6 | |||||||
| Los Assert | Pa | dBm | -23.6 | |||||||
| Loss Hysteresis | Pd-Pa | dBm | 2 | |||||||
Notes:
1. Transmitter consists of 4 lasers operating at 25.78Gb/s each.
2. Minimum value is informative.
3. Hit ratio 5x10-5.
4. Receiver consists of 4 photodetectors operating at 25.78Gb/s each.
5. Minimum value is informative, equals min TxOMA with infinite ER and max channel insertion loss.
6. SRS is measured with vertical eye closure penalty of 1.8 dB max, J2 of 0.30 UI, and J9 of 0.47 UI.
7. Power value and power accuracy are with all channels on.
FAQ
1. How about the warranty ?
All of our products are 3 years warranty (The return and change service within 1 year, repair within 2 years)
2. What is your terms of delivery?
EXW, FOB, DAP ... is available, you can contact with us for more details
